SPECIFICATIONS

Brand Name: Foval

Flexible Solar Panel: No

Foldable Solar Panel: Yes

High-concerned chemical: None

Number of Panels: >20

Origin: Mainland China

Type: Solar Panel

Product Specifications

Product Type: Foldable Solar Panel
Series: CSUL Series
Available Power: 120W / 200W / 300W / 400W
Solar Cell Type: Monocrystalline Silicon
Module Conversion Efficiency: Approx. 23%
Connector Type: MC4 Connector
Application: Portable Power Station, Battery Charging, Camping, RV, Outdoor Activities, Off-grid Power System

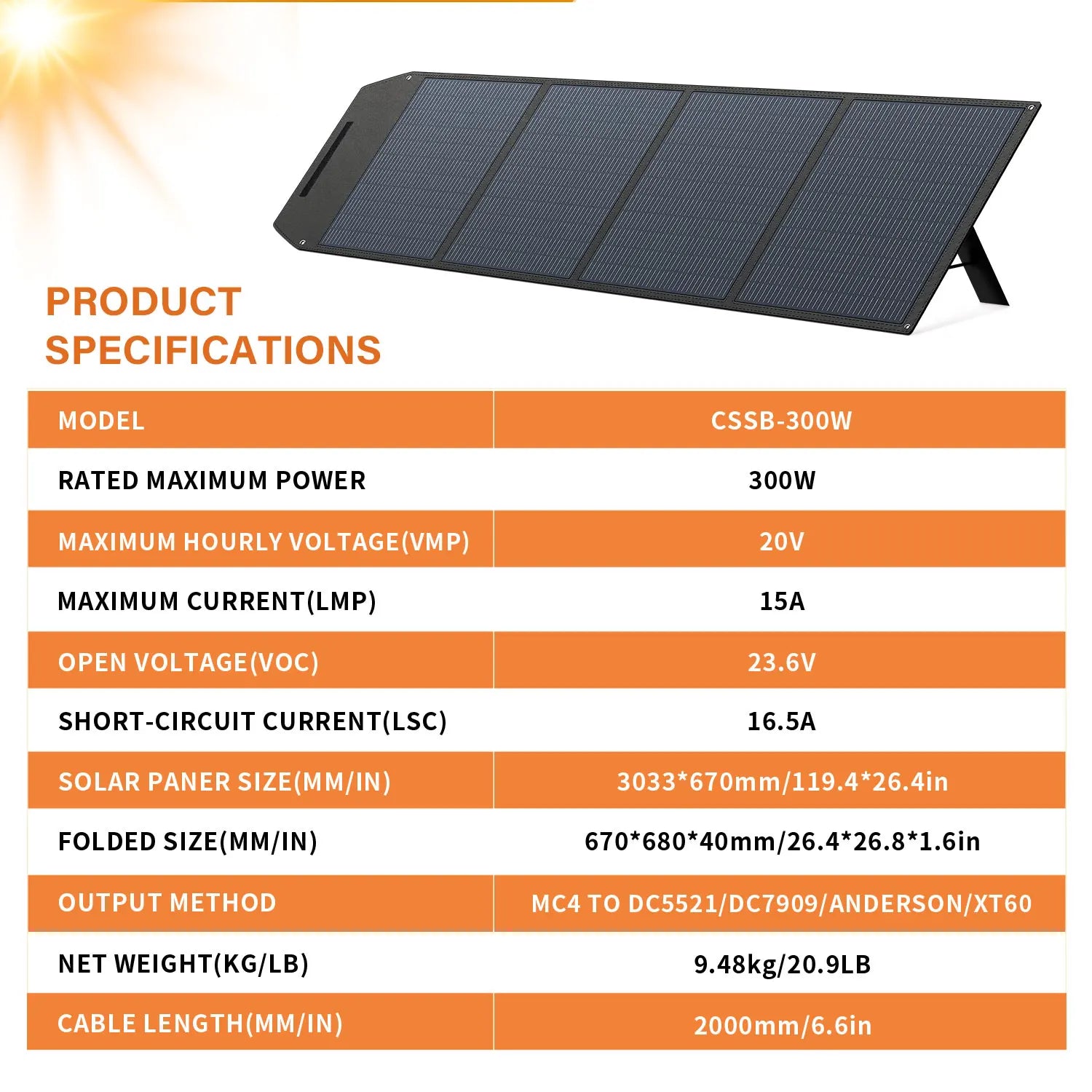

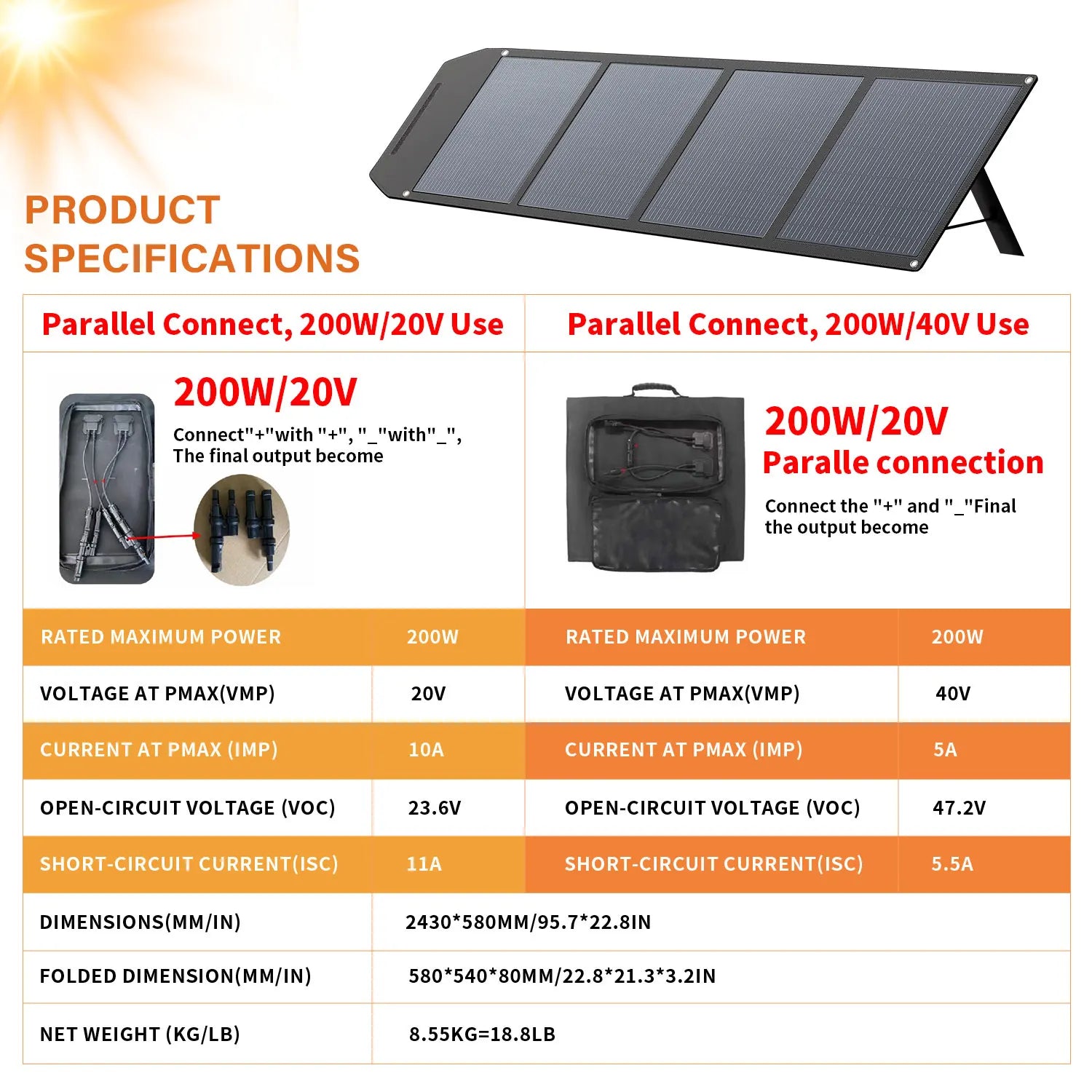

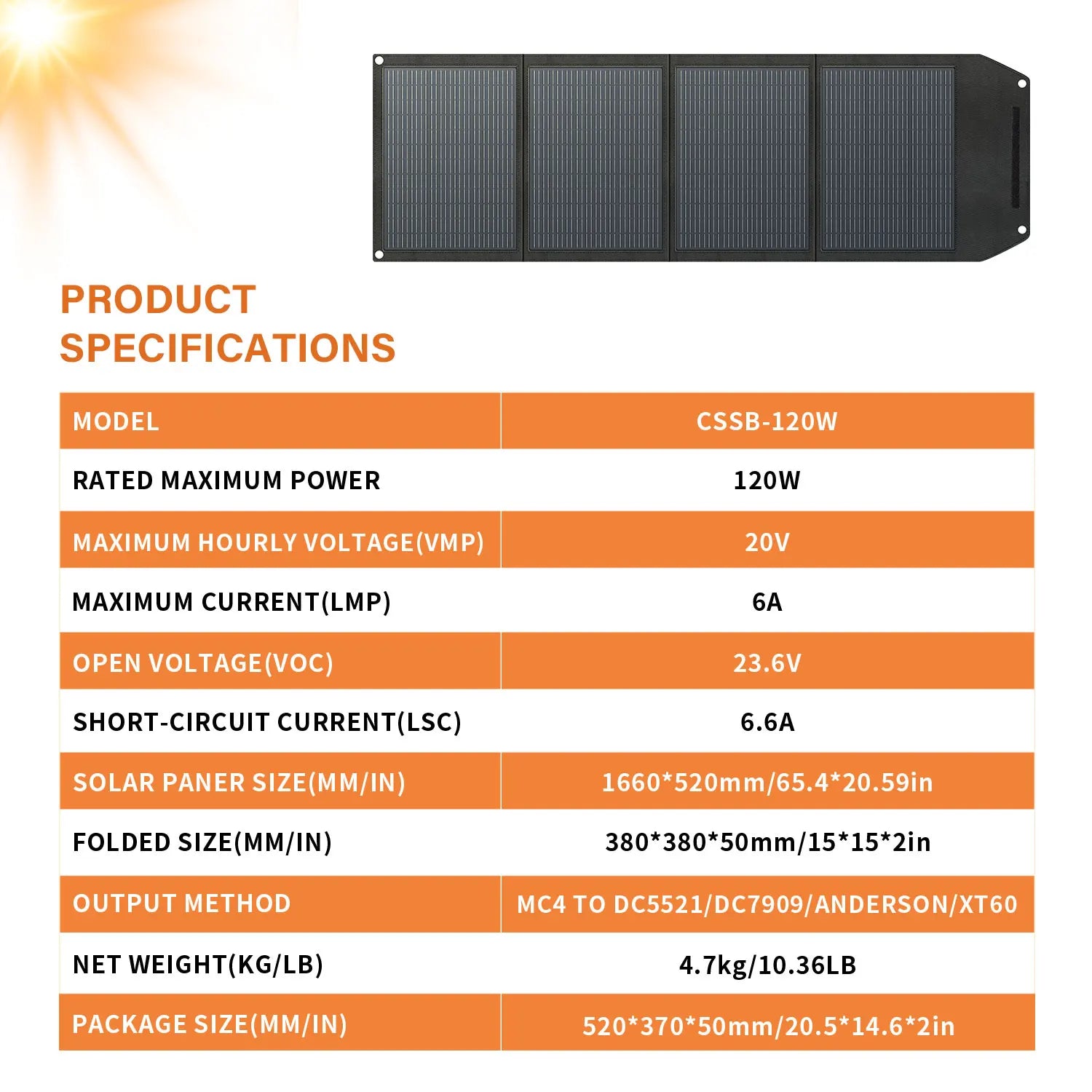

Electrical Specifications

Maximum Output Power: 120W / 200W / 300W / 400W
Operating Voltage (Vmp): DC 20V (120W/200W/300W) / DC 38V (400W)
Operating Current (Imp): 6A (120W) / 10A (200W) / 15A (300W) / 10.53A (400W)
Open Circuit Voltage (Voc): DC 23.6V (120W/200W/300W) / DC 44.84V (400W)
Short Circuit Current (Isc): 6.6A (120W) / 11A (200W) / 16.5A (300W) / 11.58A (400W)

Key Selling Points

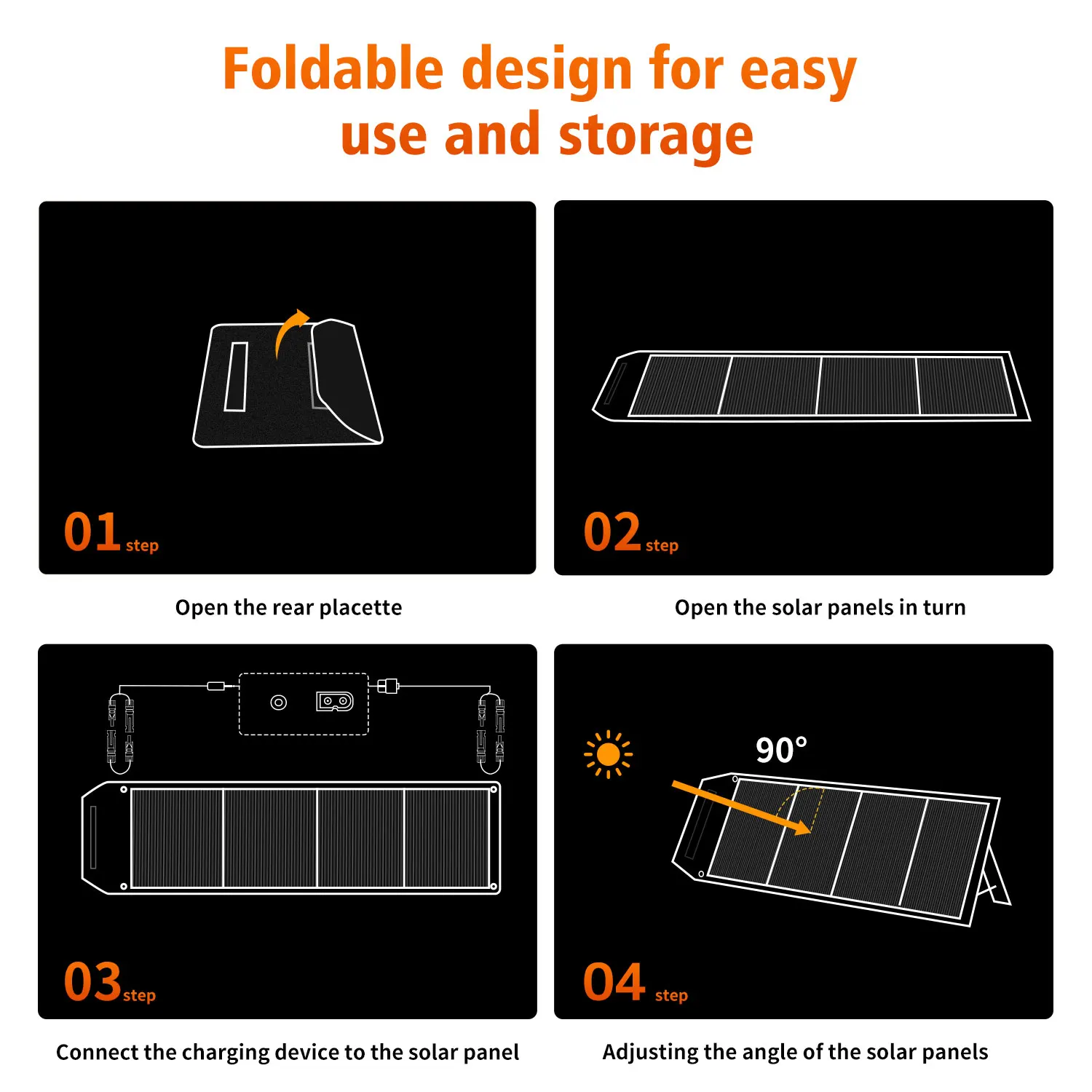

1. Foldable & Portable Solar Design

The four-fold design makes the solar panel easy to carry, store and transport. It is an ideal portable power solution for camping, RV trips, outdoor adventures and emergency situations.

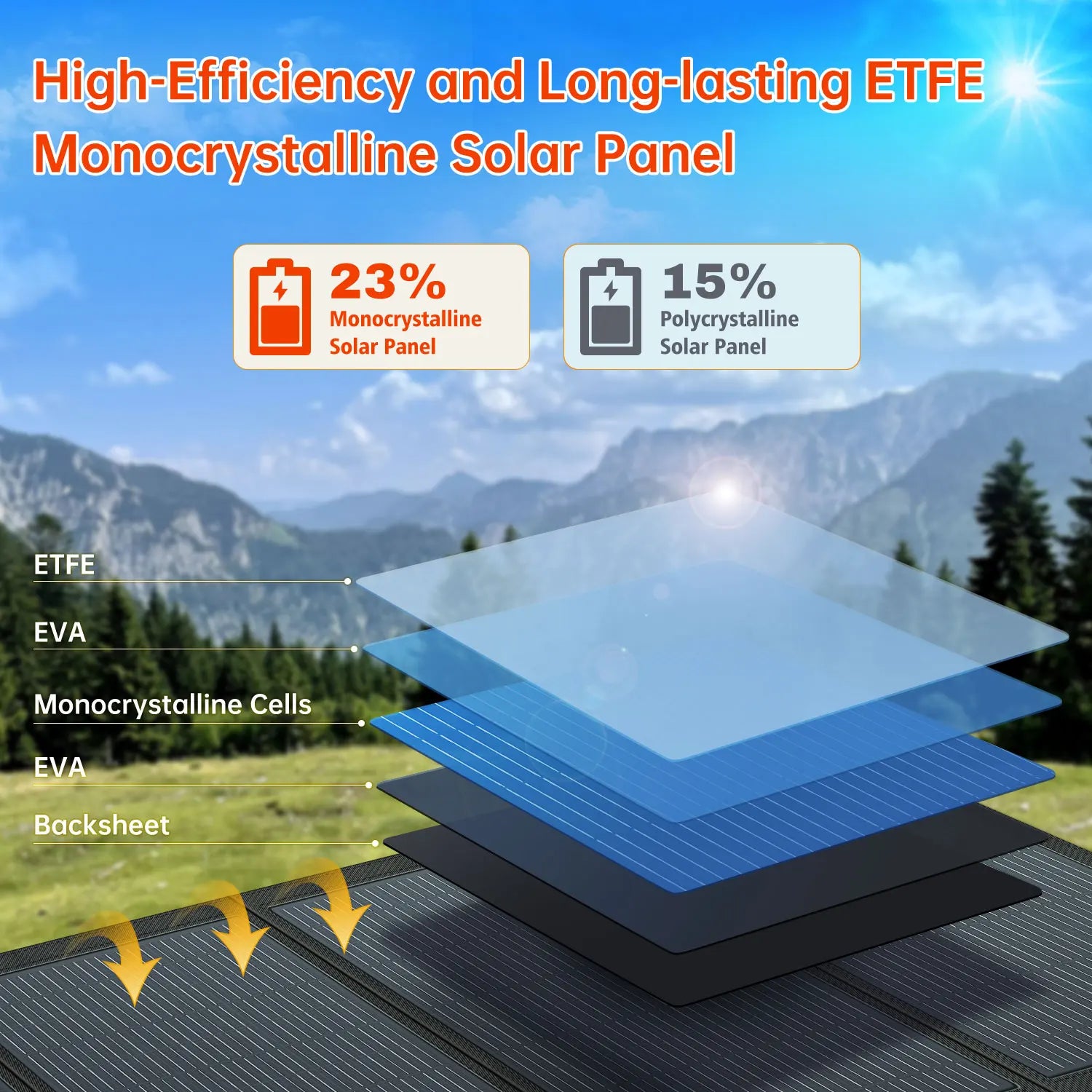

2. High Efficiency Monocrystalline Solar Cells

Built with high-quality monocrystalline silicon cells, the solar panel provides approximately 23% module conversion efficiency to help maximize solar energy utilization and improve charging performance.

3. Multiple Power Options Available

Available in 120W, 200W, 300W and 400W versions to meet different energy requirements, from small portable devices to high-capacity portable power stations.

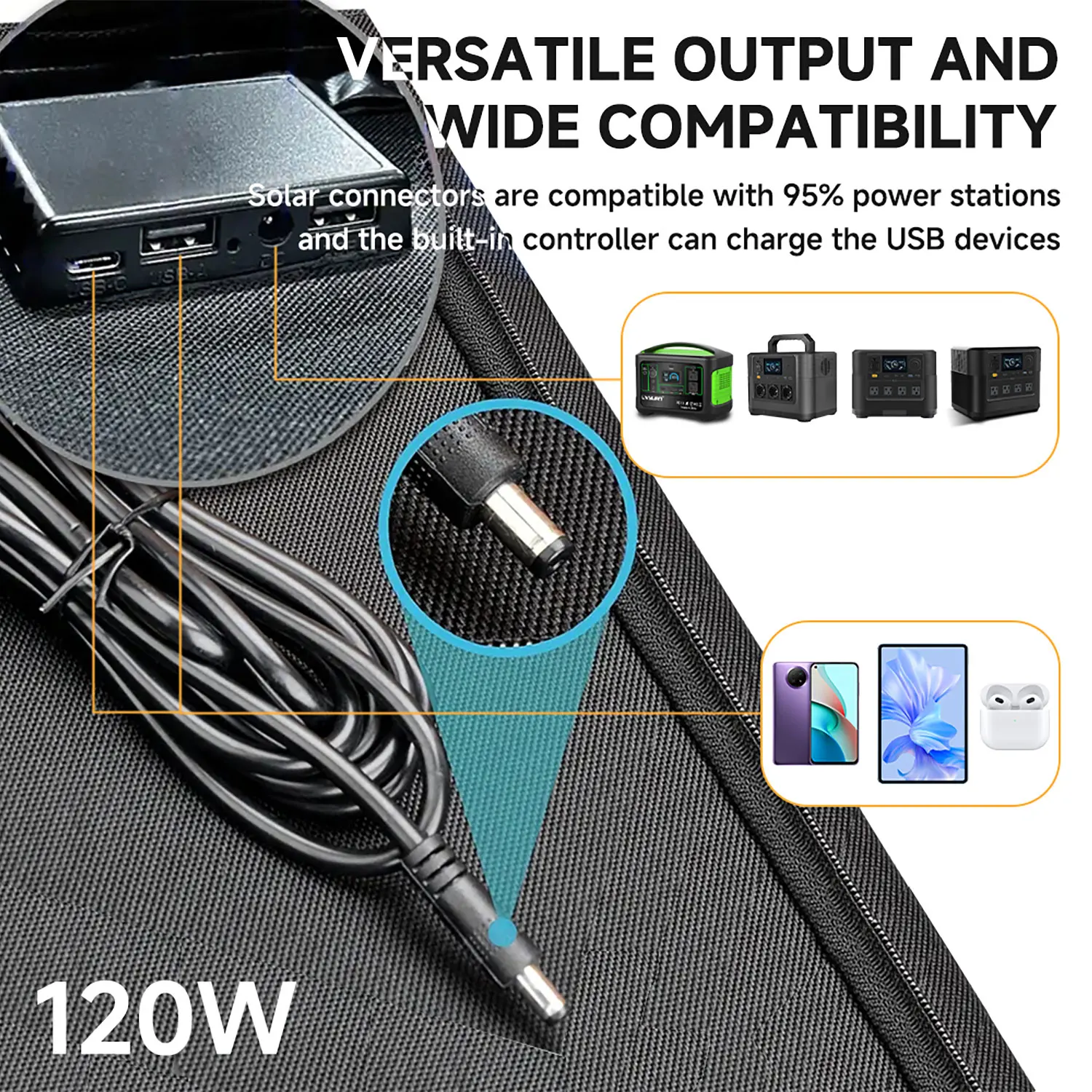

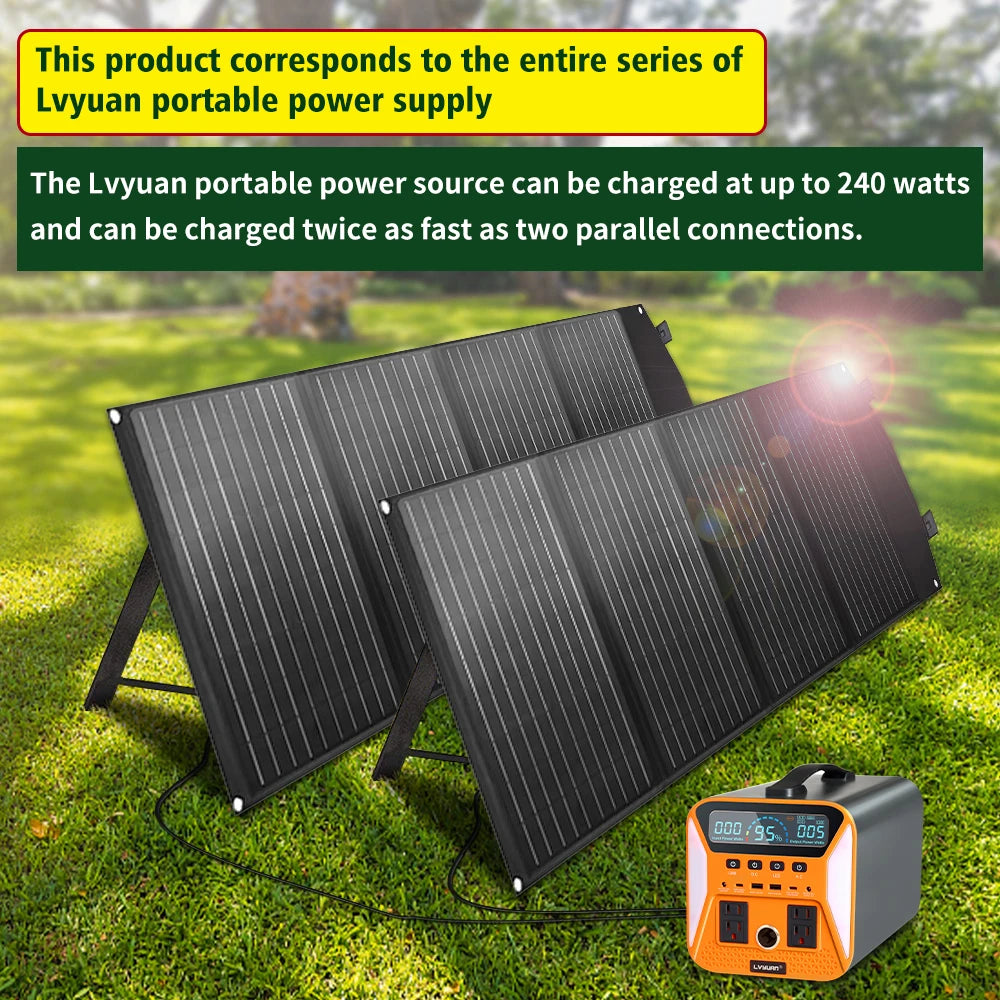

4. Wide Compatibility with Portable Power Stations

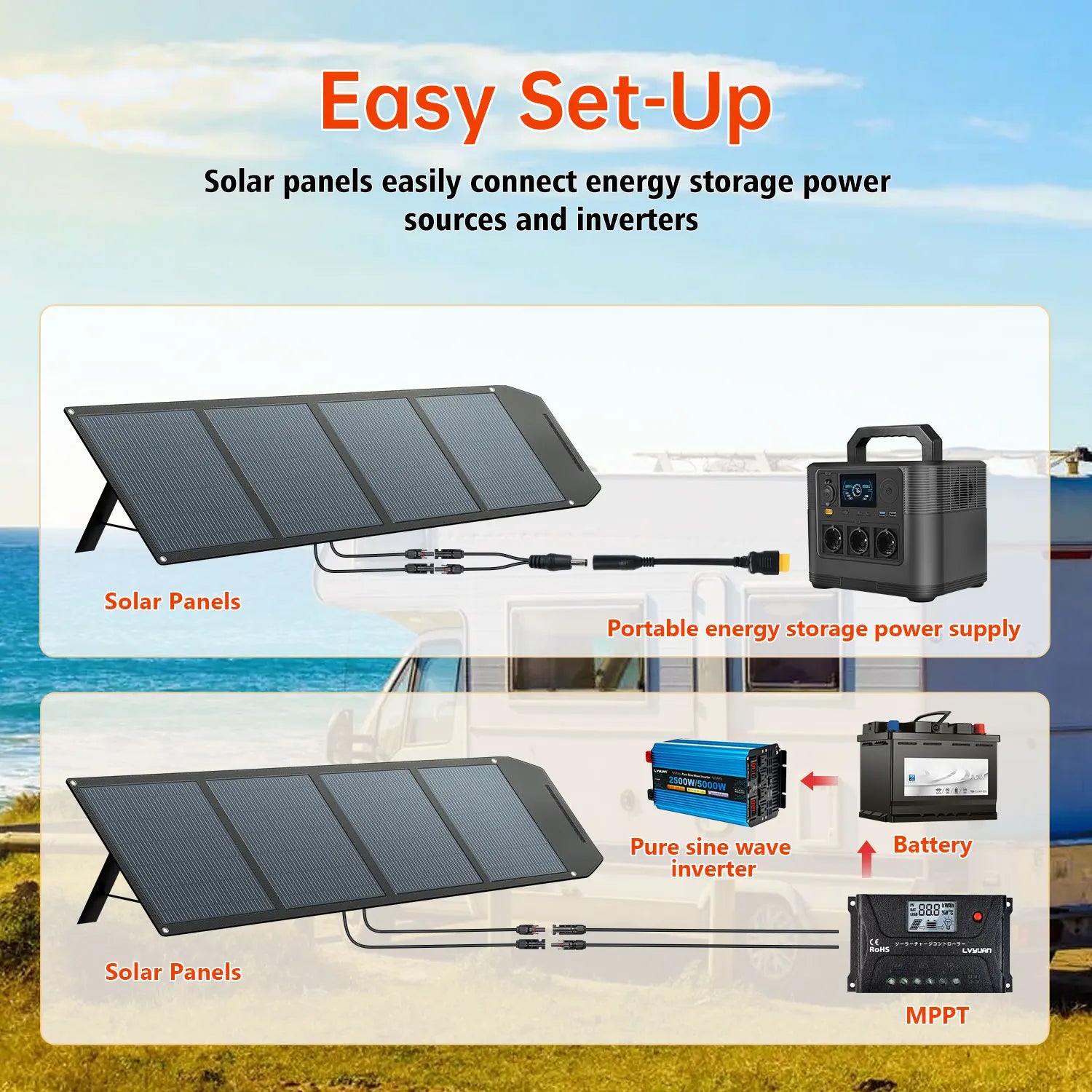

Equipped with MC4 connectors, the solar panel can be connected to portable power stations through solar charging cables. It can also work with solar charge controllers for battery charging systems.

5. Adjustable Angle for Better Solar Performance

The built-in support bracket allows users to adjust the panel angle for better sunlight exposure. Under standard test conditions, positioning the panel at the optimal angle can achieve approximately 90%-100% of rated output.

Important Notes

1. Actual power output depends on sunlight intensity, weather conditions, temperature and installation angle.

2. For best performance, place the solar panel under direct sunlight and avoid shadows covering the panel surface.

3. Do not exceed the maximum DC input voltage of the connected power station.

4. This product is designed for portable use. Avoid long-term exposure to strong wind, rain or harsh environments.
